Carton Box Making Automatic Auto Feeder Creasing Die Cutting Machine
1.Auto feeder Creasing And Die Cutting Machine funtion
AUTOMATIC feed diecutter machine ,is the new model for diecutter machine ,change the national manual feeding paperboard working condition ,this is the technology updates .diecutter machine can make cardboard box ,corrugated box,and all size
2.This Auto Feeder Creasing And Die Cutting Machine include 6 parts :
This equipment include 6 parts :Main unit (cassette box machine), paper put section, paper feed section, paper discharge section, paper discharge belt, vacuum air pump, and security guardrail
1)The paper feeding section is mainly used for stacking cardboard and adjusting the position of the cardboard.
2)The paper feed section puts the cardboard of the paper feed section into the cassette machine and corrects the position.
3) The paper discharge section ejects the jammed paperboard onto the conveyor belt.
4)The paper conveyor conveys the paperboard out of the guardrail.
5)The vacuum pump provides suction for the robot suction nozzle.
6)The safety fence encloses the machine's work area to prevent people from entering the hazardous
3.Detailed technical parametes for Creasing And Die Cutting Machine
| Model | Max,Rule Area | Workingspeed | Molor | weight | Overall Dimensions(L×W×H) |
| PYQ401C | 750×520mm | 28±2(strokes/min) | 2.2kw | 2000kg | 1260×1350×1280mm |
| PYQ203D | 930×670mm | 23±2(strokes/min) | 4.0kw | 3000kg | 1670×1670×1630mm |
| ML1100 | 1100×800mm | 20±2(strokes/min) | 5.5kw | 4500kg | 1900×1800×1700mm |
| ML1200 | 1200×830mm | 20±2(strokes/min) | 5.5kw | 4800kg | 1900×2000×1700mm |
| ML1300 | 1300×920mm | 18±2(strokes/min) | 5.5kw | 6000kg | 2000×2400×1800mm |
| ML1400 | 1400×1000mm | 18±2(strokes/min) | 5.5kw | 6500kg | 2000×2450×1900mm |
| ML1500 | 1500×1050mm | 18±2(strokes/min) | 5.5kw | 7000kg | 2000×2500×1930mm |
| ML1600 | 1600×1250mm | 16±2(strokes/min) | 11kw | 11000kg | 2170×2560×2230mm |
| ML1800 | 1800×1300mm | 16±2(strokes/min) | 15kw | 13500kg | 2240×2800×2130mm |
4. Company information
KS Pack Hebei Jinguang Packing Machine Co.,Ltd , , is a professional corrugated carton printing equipment and related machinery for carton production over ten years . Our Company is located in the Lisiwei Industrial part ,Dongguang county Hebei province , China .
Our main products are corrugated carton box printing , slotting , die cutting machine (semi auto , automatic )
Middle high speed corrugated paperboard production line , automatic folder gluer machine , stitching machine , flute laminator , thin blade slitter , partition machine , automatic assemble machine , binding machine and so on .
Our products not only sale domestic market well and also gain plenty of export experience . Our products exported to Russia , middle east , Africa , Asia and so on . Our product quality and enterprise credit standing in approved by our customers home and aboard .
11 years export experience
Export to more than 100 countries
Export more than 100 coutainers capacity
Professional international sales more than 10 persons
Professional sale team , technical team and after sales service team
Our KS pack group company :
Hebei Jinguang packing machine Co.,ltd
Cangzhou Kingsun IMP & EXP Co.,Ltd
Dongguang qunbang carton machinery co.,Ltd

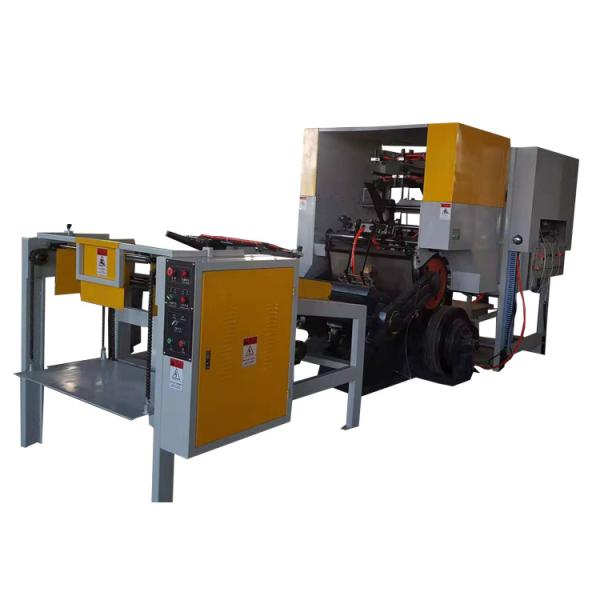

5.Auto feeder Creasing Die Cutting Machine pictures
